INA 型號	Rothe Erde 型號	TG 型號	外形尺寸				安裝尺寸						結構尺寸								齒參數(mm)				額定軸向靜負荷(KN)	重量(KG)

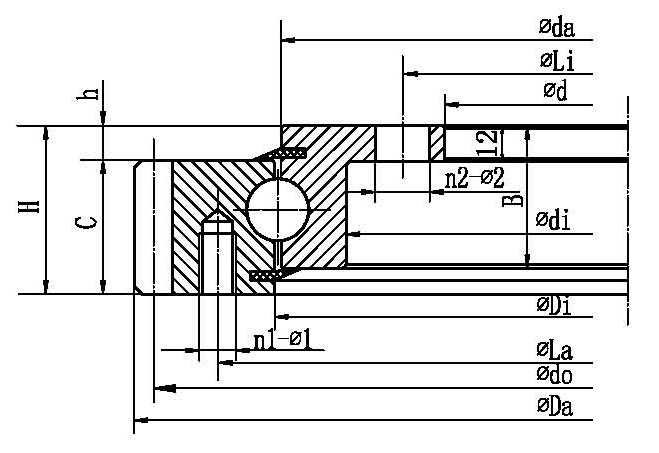

INA 型號	Rothe Erde 型號	TG 型號	Da	D	di	H	La	Li	n1	n2	φ1	φ2	D1	d	b	h	B	C	Di	da	m	z	do	x	額定軸向靜負荷(KN)	重量(KG)
VLA200414N ZT			503.3		304	56	455	332	10	12	M12	φ18	480	369.5	40	8.5	47.5	44.5	415.5	412.5	5	99	495		600	31.2
VLA200414N			503.3		304	56	455	332	10	12	M12	18	480		40	11.5	47.5	44.5	415.5	412.5	5	99	495		295	29.5
	231.20.0400.013		504		304	56	455	332	10	12	M12	18			45.5	10.5	45.5	45.5	415.5	412.5	5	99	495		250	29.3
	231.20.0400.503		504		304	56	455	332	10	24	M12	18			45.5	10.5	45.5	45.5	415.5	412.5	5	99	495		250	29
		E.505.20.00.C	504		304	56	455	332	10	12	M12	φ18		375	46	10	46	46	415.5	412.5	5	99	495		500	33.3
		E.505.20.C	504		304	56	455	332	10	12	M12	φ18		373	46	10	46	46	415.5	412.5	5	99	495		640	34
			505		304	56	455	332	10	12	M12	φ18		368	56	10	46	46	413	409	5	99	495		470	32
	231.21.0475.013		504		305	56	455	332	10	12	M12	18			45.5	10.5	45.5	45.5	417	412.5	5	99	495		250	29.3
VLA200544N ZT			640.3		434	56	585	462	14	14	M12	φ18		502	44.5	11.5	44.5	44.5	545.5	542.5	6	105	630		670	41.5
VLA200544N ZT			640.3		434	56	585	462	14	14	M12	φ18		499.5	44.5	8.5	47.5	44.5	545.5	542.5	6	105	630		790	41.6
VLA200544N			640.3		434	56	585	462	14	14	M12	18			44.5	11.5	47.5	44.5	545.5	542.5	6	105	630		385	41.5
	231.20.0500.013		640.8		434	56	585	462	14	14	M12	18			45.5	10.5	45.5	45.5	545.5	542.5	6	105	630		330	39.5
	231.20.0500.503		640.8		434	56	585	462	14	28	M12	18			45.5	10.5	45.5	45.5	545.5	542.5	6	105	630		330	39.2
		E.650.20.C	640.8		434	56	585	462	14	14	M12	φ18		505	46	10	46	46	545.5	542.5	6	105	630		670	40.6
	231.20.0500.503		640.8		434	56	585	462	14	28	M12	φ18		505	45.5	10.5	45.5	45.5	545.5	542.5	6	105	630		660	40.6
	231.21.0575.013		640.8		435	56	585	462	14	14	M12	18			45.5	10.5	45.5	45.5	547	542.5	6	105	630		330	39.5
			742		534	56	685	562	16	16	M12	φ18		598	46	10	46	46	645	641	6	122	732		740	51.4
VLA200644N ZT			742.3		534	56	685	562	16	16	M12	φ18		599.5	44.5	8.5	47.5	44.5	645.5	642.5	6	122	732		900	50
VLA 200644N			742.3		534	56	685	562	16	16	M12	18			44.5	11.5	47.5	44.5	645.5	642.5	6	122	732		455	48.5
	231.20.0600.013		742.8		534	56	685	562	16	16	M12	18			45.5	10.5	45.5	45.5	645.5	642.5	6	122	732		390	47.6
	231.20.0600.503		742.8		534	56	685	562	16	32	M12	18			45.5	10.5	45.5	45.5	645.5	642.5	6	122	732		390	47.2
		E.750.20.00.C	742.8		534	56	685	562	16	16	M12	φ18		605	46	10	46	46	645.5	642.5	6	122	732		780	55.1
	231.21.0675.013		742.8		535	56	685	562	16	16	M12	18			45.5	10.5	45.5	45.5	647	642.5	6	122	732		390	47.6
			744		535	58	685	562	16	12	M12	M12		600	46	12	46	46	643	642	6	122	732		333	54.7
VLA200744N ZT			838.1		634	56	785	662	18	16	M12	φ18		699.5	44.5	8.5	47.5	44.5	745.5	742.5	6	138	828		1050	56
VLA 200744N			838.1		634	56	785	662	18	16	M12	18			44.5	11.5	47.5	44.5	745.5	742.5	6	138	828		530	54.5
	231.20.0700.013		838.8		634	56	785	662	18	16	M12	18			45.5	10.5	45.5	45.5	745.5	742.5	6	138	828		450	53.5
	231.20.0700.503		838.8		634	56	785	662	18	32	M12	18			45.5	10.5	45.5	45.5	745.5	742.5	6	138	828		450	53.1
		E.850.20.00.C	838.8		634	56	785	662	18	16	M12	φ18		705	46	10	46	46	745.5	742.5	6	138	828		910	60
			840		634	56	785	662	18	16	M12	φ18		698	46	10	46	46	745	741	6	138	828		840	57.7
